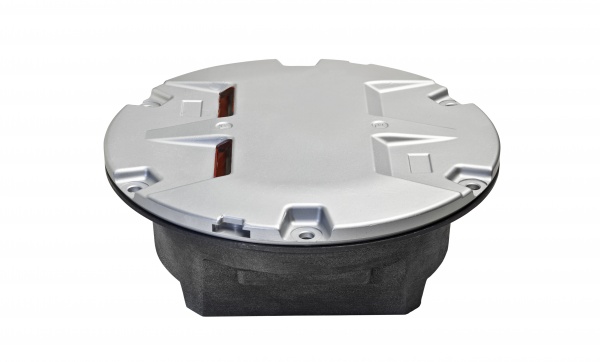

LIRA

LED Inset Approach Light

COMPLIANT with the Current Edition of the following Specs:

ICAO: Annex 14 – Volume I

IEC: TS 61827

CAA: Cap 168

IAAE: TP312



DIMENSIONS:

Diameter: 12″

Protrusion: 6.3 mm

Fixture Depth: 106 mm

Base Depth: 160 mm



CONSUMPTIONS:

Approach White (w/o Artic Kit): 73 W

Approach White (with Artic Kit): 113 W

Approach Red (w/o Artic Kit): 61 W

Approach Red (with Artic Kit): 101 W



MAIN OPTIONS:

Arctic Kit: electric device, thermostatically controlled, that heats the area near the prisms (inset fixtures) or the external glass lens (elevated fixtures) favoring the melting of the ice and/or snow; thus avoids the light beam obstruction with a behaviour similar to a traditional halogen lamp. 20 VA per plug.

Monitoring: electronic device that returns information of open circuit at the secondary of the isolation transformer in case of failure of a luminous LED source or control board.
