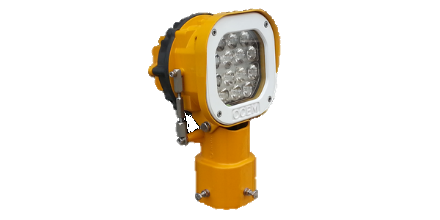

LERA

LED Elevated Approach, Threshold and Runway End Light

COMPLIANT with the Current Edition of the following Specs:

ICAO: Annex 14 – Volume I

IEC: TS 61827

FAA: L-862-S AC150/5345-46 and “Engineering Brief No.67”

NATO: STANAG 3316



DIMENSIONS:

Width: Ø144 mm

Height: 310 mm

Breakable Coupling Thread: 2″-11 GAS



CONSUMPTIONS:

Approach White: 38 W

Approach Red: 26 W

Threshold/Threshold Wing Bar Green: 30 W

Runway End/Stop Bar FAA: 20 W

Stop Bar ICAO: 17 W



MAIN OPTIONS:

Monitoring: electronic device that returns information of open circuit at the secondary of the isolation transformer in case of failure of a luminous LED source or control board.
